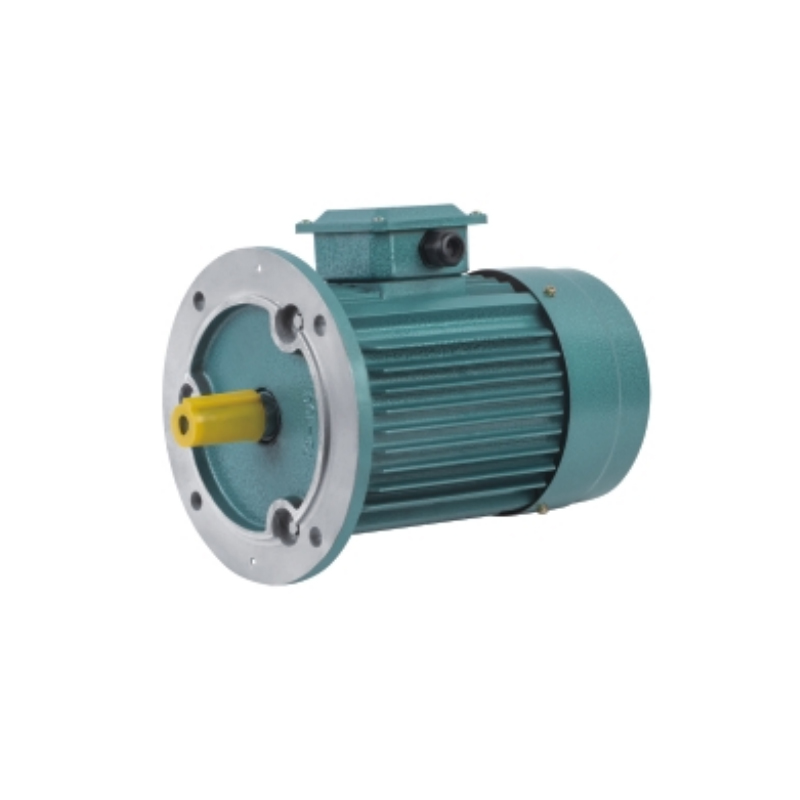

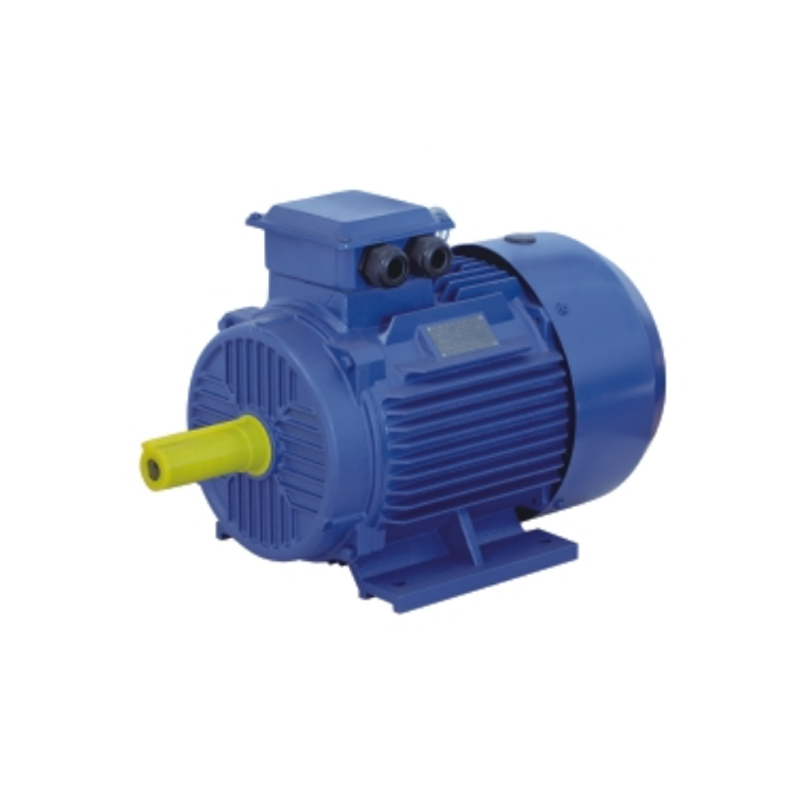

YE3系列三相異步電動機是采用新材料、新工藝制造的全封閉鼠籠式三相異步電動機，其效率指標符合GB18613-2020《電動機能效限定值及能效等級》規定的3級能效的效率值，相當于1EC60034-30-1的1E3效率值。
本系列電動機的提高效率設計，符合國家對行業提出的節能降耗要求。本系列電動機具有節能效果好、結構合理、防護等級高、溫升裕度大等特點，適用于機床、風機、水泵、包裝機械、運輸機械等各種應用場合，是Y2、YE2系列電動機的理想換代產品。
如需更多信息，請發送電子郵件或撥打我們的熱線電話
| YE3系列電動機技術參數Technical parameters of YE3 series motors | ||||||||||||
| 型號 Type | 額定功率Output | 滿載時Full Load | 空載噪音NoisedB(A) | 空載振動Vibration(mm/s) | 堵轉轉矩LRT 額定轉矩RLT | 最大轉矩BDT 額定轉矩RLT | 堵轉電流LRA 額定電流RLA | 重量weight(kg) | ||||
| (kw) | (HP) | 電流Current(A) | 轉速Speed（r/min） | 效率Eff（%） | 功率因數P.F.(Cosφ) | |||||||
| 同步轉速3000 r/min(2極)Synchronous Speed3000r/min(2p) | ||||||||||||
| YE3-80M1-2 | 0.75 | 1 | 1.72 | 2855 | 80.7 | 0.82 | 62 | 1.6 | 2.3 | 2.3 | 7 | 18 |
| YE3-80M2-2 | 1.1 | 1.5 | 2.43 | 2855 | 82.7 | 0.83 | 62 | 1.6 | 2.2 | 2.3 | 7.6 | 19 |
| YE3-90S-2 | 1.5 | 2 | 3.22 | 2875 | 84.2 | 0.84 | 67 | 1.6 | 2.2 | 2.3 | 7.9 | 18 |
| YE3-90L-2 | 2.2 | 3 | 4.58 | 2875 | 85.9 | 0.85 | 67 | 1.6 | 2.2 | 2.3 | 7.9 | 34 |
| YE3-100L-2 | 3 | 4 | 6 | 2880 | 87.1 | 0.87 | 74 | 1.6 | 2.2 | 2.3 | 8.5 | 38 |
| YE3-112M-2 | 4 | 5.5 | 7.8 | 2900 | 88.1 | 0.88 | 77 | 1.6 | 2.2 | 2.3 | 8.5 | 45 |
| YE3-132S1-2 | 5.5 | 7.5 | 10.6 | 2900 | 89.2 | 0.88 | 79 | 1.6 | 2 | 2.3 | 8.5 | 63 |
| YE3-132S2-2 | 7.5 | 10 | 14.4 | 2900 | 90.1 | 0.88 | 79 | 1.6 | 2 | 2.3 | 8.5 | 69 |
| YE3-160M1-2 | 11 | 15 | 20.6 | 2940 | 91.2 | 0.89 | 81 | 2.2 | 2 | 2.3 | 8.5 | 108 |
| YE3-160M2-2 | 15 | 20 | 27.9 | 2940 | 91.9 | 0.89 | 81 | 2.2 | 2 | 2.3 | 8.5 | 123 |
| YE3-160L-2 | 18.5 | 25 | 34.2 | 2940 | 92.4 | 0.89 | 81 | 2.2 | 2 | 2.3 | 8.5 | 137 |
| YE3-180M-2 | 22 | 30 | 40.5 | 2955 | 92.7 | 0.89 | 83 | 2.2 | 2 | 2.3 | 8.5 | 177 |
| YE3-200L1-2 | 30 | 40 | 54.9 | 2965 | 93.3 | 0.89 | 84 | 2.2 | 2 | 2.3 | 8.5 | 245 |
| YE3-200L2-2 | 37 | 50 | 67.4 | 2965 | 93.7 | 0.89 | 84 | 2.2 | 2 | 2.3 | 8.5 | 249 |
| YE3-225M-2 | 45 | 60 | 80.8 | 2970 | 94 | 0.9 | 86 | 2.2 | 2 | 2.3 | 8 | 293 |
| YE3-250M-2 | 55 | 75 | 98.5 | 2975 | 94.3 | 0.9 | 89 | 2.2 | 2 | 2.3 | 8 | 405 |
| YE3-280S-2 | 75 | 100 | 134 | 2975 | 94.7 | 0.9 | 91 | 2.2 | 1.8 | 2.3 | 7.5 | 575 |
| YE3-280M-2 | 90 | 125 | 160 | 2975 | 95 | 0.9 | 91 | 2.2 | 1.8 | 2.3 | 7.5 | 600 |
| YE3-315S-2 | 110 | 150 | 195 | 2980 | 95.2 | 0.9 | 92 | 2.8 | 1.8 | 2.3 | 7.5 | 874 |
| YE3-315M-2 | 132 | 180 | 234 | 2980 | 95.4 | 0.9 | 92 | 2.8 | 1.8 | 2.3 | 7.5 | 952 |
| YE3-315L1-2 | 160 | 220 | 279 | 2980 | 95.6 | 0.91 | 92 | 2.8 | 1.8 | 2.3 | 7.5 | 995 |
| YE3-315L2-2 | 200 | 270 | 349 | 2980 | 95.8 | 0.91 | 92 | 2.8 | 1.8 | 2.2 | 7.5 | 1086 |
| YE3-355M1-2 | 220 | 300 | 383 | 2980 | 95.8 | 0.91 | 100 | 2.8 | 1.6 | 2.2 | 7.5 | 1690 |
| YE3-355M2-2 | 250 | 340 | 436 | 2980 | 95.8 | 0.91 | 100 | 2.8 | 1.6 | 22 | 7.5 | 1740 |
| YE3-355L1-2 | 280 | 380 | 488 | 2980 | 95.8 | 0.91 | 100 | 2.8 | 1.6 | 2.2 | 7.5 | 1908 |
| YE3-355L2-2 | 315 | 430 | 549 | 2980 | 95.8 | 0.91 | 100 | 2.8 | 1.6 | 2.2 | 7.5 | 1735 |
| 同步轉速1500r/min(4極)Synchronous Speed1500r/min(4P) | ||||||||||||
| YE3-80M1-4 | 0.55 | 0.75 | 1.38 | 1400 | 80.8 | 0.75 | 56 | 1.6 | 2.4 | 2.3 | 6.6 | 17 |
| YE3-80M2-4 | 0.75 | 1 | 1.84 | 1400 | 82.5 | 0.75 | 56 | 1.6 | 2.3 | 2.3 | 6.6 | 19 |
| YE3-90S-4 | 1.1 | 1.5 | 2.61 | 1425 | 84.1 | 0.76 | 59 | 1.6 | 2.3 | 2.3 | 6.8 | 25 |
| YE3-90L-4 | 1.5 | 2 | 3.47 | 1425 | 85.3 | 0.77 | 59 | 1.6 | 2.3 | 2.3 | 7 | 30 |
| YE3-100L1-4 | 2.2 | 3 | 4.76 | 1440 | 86.7 | 0.81 | 64 | 1.6 | 2.3 | 2.3 | 7.6 | 37 |
| YE3-100L2-4 | 3 | 4 | 6.3 | 1450 | 87.7 | 0.82 | 64 | 1.6 | 2.3 | 2.3 | 7.6 | 43 |
| YE3-112M-4 | 4 | 5.5 | 8.4 | 1450 | 88.6 | 0.82 | 65 | 1.6 | 2.2 | 2.3 | 7.8 | 65 |
| YE3-132S-4 | 5.5 | 7.5 | 11.2 | 1455 | 89.6 | 0.83 | 71 | 1.6 | 2 | 2.3 | 7.9 | 68 |
| YE3-132M-4 | 7.5 | 10 | 15 | 1455 | 90.4 | 0.84 | 71 | 1.6 | 2 | 2.3 | 7.5 | 82 |
| YE3-160M-4 | 11 | 15 | 21.5 | 1465 | 91.4 | 0.85 | 73 | 2.2 | 2.2 | 2.3 | 7.7 | 114 |
| YE3-160L-4 | 15 | 20 | 28.8 | 1465 | 92.1 | 0.86 | 73 | 2.2 | 2.2 | 2.3 | 7.8 | 137 |
| YE3-180M-4 | 18.5 | 25 | 35.3 | 1470 | 92.6 | 0.86 | 76 | 2.2 | 2 | 2.3 | 7.8 | 196 |
| YE3-180L-4 | 22 | 30 | 41.8 | 1475 | 93 | 0.86 | 76 | 2.2 | 2 | 2.3 | 7.8 | 200 |
| YE3-200L-4 | 30 | 40 | 56.6 | 1475 | 93.6 | 0.86 | 76 | 2.2 | 2 | 2.3 | 7.3 | 260 |
| YE3-225S-4 | 37 | 50 | 69.6 | 1480 | 93.9 | 0.86 | 78 | 2.2 | 2 | 2.3 | 7.4 | 306 |
| YE3-225M-4 | 45 | 60 | 84.4 | 1480 | 94.2 | 0.86 | 78 | 2.2 | 2 | 2.3 | 7.4 | 336 |
| YE3-250M-4 | 55 | 75 | 103 | 1480 | 94.6 | 0.86 | 79 | 2.2 | 2.2 | 2.3 | 7.4 | 423 |
| YE3-280S-4 | 75 | 100 | 136 | 1485 | 95 | 0.88 | 80 | 2.2 | 2 | 2.3 | 6.9 | 600 |
| YE3-280M-4 | 90 | 125 | 163 | 1485 | 95.2 | 0.88 | 80 | 2.2 | 2 | 2.3 | 6.9 | 615 |
| YE3-315S-4 | 110 | 150 | 197 | 1485 | 95.4 | 0.89 | 88 | 2.8 | 2 | 2.2 | 7 | 887 |
| YE3-315M-4 | 132 | 180 | 236 | 1485 | 95.6 | 0.89 | 88 | 2.8 | 2 | 2.2 | 7 | 1058 |
| YE3-315L1-4 | 160 | 220 | 285 | 1485 | 95.8 | 0.89 | 88 | 2.8 | 2 | 2.2 | 7.1 | 1075 |
| YE3-315L2-4 | 200 | 270 | 352 | 1485 | 96 | 0.9 | 88 | 2.8 | 2 | 2.2 | 7.1 | 1180 |
| YE3-355M1-4 | 220 | 300 | 387 | 1490 | 96 | 0.9 | 95 | 2.8 | 2 | 2.2 | 7.1 | 1570 |
| YE3-355M2-4 | 250 | 340 | 440 | 1490 | 96 | 0.9 | 95 | 2.8 | 2 | 2.2 | 7.1 | 1692 |
| YE3-355L1-4 | 280 | 380 | 492 | 1490 | 96 | 0.9 | 95 | 2.8 | 2 | 2.2 | 7.1 | 1642 |
| YE3-355L2-4 | 315 | 430 | 554 | 1490 | 96 | 0.9 | 95 | 2.8 | 2 | 2.2 | 7.1 | 1795 |
| 同步轉速1000 r/min(6極)Synchronous Speed1000r/min(6P) | ||||||||||||
| YE3-80M1-6 | 0.37 | 0.5 | 1.09 | 885 | 73.5 | 0.7 | 54 | 1.6 | 1.9 | 2 | 6 | 15 |
| YE3-80M2-6 | 0.55 | 0.75 | 1.5 | 885 | 77.2 | 0.72 | 54 | 1.6 | 1.9 | 2.1 | 6 | 17 |
| YE3-90S-6 | 0.75 | 1 | 2.03 | 935 | 78.9 | 0.71 | 57 | 1.6 | 2 | 2.1 | 6 | 26 |
| Ye3-90L-6 | 1.1 | 1.5 | 2.83 | 940 | 81 | 0.73 | 57 | 1.6 | 2 | 2.1 | 6 | 31 |
| YE3-100L-6 | 1.5 | 2 | 3.78 | 945 | 82.5 | 0.73 | 61 | 1.6 | 2 | 2.1 | 6.5 | 30 |
| YE3-112M-6 | 2.2 | 3 | 5.4 | 950 | 84.3 | 0.74 | 65 | 1.6 | 2 | 2.1 | 6.6 | 52 |
| YE3-132S-6 | 3 | 4 | 7.2 | 960 | 85.6 | 0.74 | 69 | 1.6 | 2 | 2.1 | 6.8 | 63 |
| YE3-132M1-6 | 4 | 5.5 | 9.5 | 960 | 86.8 | 0.74 | 69 | 1.6 | 2 | 2.1 | 6.8 | 74 |
| YE3-132M2-6 | 5.5 | 7.5 | 12.7 | 960 | 88 | 0.75 | 69 | 1.6 | 2 | 2.1 | 7 | 82 |
| YE3-160M-6 | 7.5 | 10 | 16.2 | 970 | 89.1 | 0.79 | 73 | 2.2 | 2 | 2.1 | 7 | 104 |
| YE3-160L-6 | 11 | 15 | 23.1 | 970 | 90.3 | 0.8 | 73 | 2.2 | 2 | 2.1 | 7.2 | 163 |
| YE3-180L-6 | 15 | 20 | 30.9 | 975 | 91.2 | 0.81 | 73 | 2.2 | 2 | 2.1 | 7.3 | 166 |
| YE3-200L1-6 | 18.5 | 25 | 37.8 | 975 | 91.7 | 0.81 | 73 | 2.2 | 2 | 2.1 | 7.3 | 230 |
| YE3-200L2-6 | 22 | 30 | 44.8 | 975 | 92.2 | 0.81 | 73 | 2.2 | 2 | 2.1 | 7.4 | 230 |
| YE3-225M-6 | 30 | 40 | 59.1 | 985 | 92.9 | 0.83 | 74 | 2.2 | 2 | 2.1 | 6.9 | 294 |
| YE3-250M-6 | 37 | 50 | 71.7 | 985 | 93.3 | 0.84 | 76 | 2.2 | 2 | 2.1 | 7.1 | 385 |
| YE3-280S-6 | 45 | 60 | 85.8 | 985 | 93.7 | 0.85 | 78 | 22 | 2 | 2 | 7.3 | 460 |
| YE3-280M-6 | 55 | 75 | 103 | 985 | 94.1 | 0.86 | 78 | 2.2 | 2 | 2 | 7.3 | 481 |
| 同步轉速1000r/min(6極)Synchronous Speed1000r/min(6P) | ||||||||||||
| YE3-315S-6 | 75 | 100 | 143 | 990 | 94.6 | 0.84 | 83 | 2.8 | 2 | 2 | 6.6 | 844 |
| YE3-315M-6 | 90 | 125 | 170 | 990 | 94.9 | 0.85 | 83 | 2.8 | 2 | 2 | 6.7 | 1055 |
| YE3-315L1-6 | 110 | 150 | 207 | 990 | 95.1 | 0.85 | 83 | 2.8 | 2 | 2 | 6.7 | 981 |
| YE3-315L2-6 | 132 | 180 | 244 | 990 | 95.4 | 0.86 | 83 | 2.8 | 2 | 2 | 6.8 | 1105 |
| YE3-355M1-6 | 160 | 220 | 296 | 990 | 95.6 | 0.86 | 85 | 2.8 | 1.8 | 2 | 6.8 | 1524 |
| YE3-355M2-6 | 200 | 270 | 365 | 990 | 95.8 | 0.87 | 85 | 2.8 | 1.8 | 2 | 6.8 | 1658 |
| YE3-355L1-6 | 220 | 300 | 401 | 990 | 95.8 | 0.87 | 85 | 2.8 | 1.8 | 2 | 6.8 | 1908 |
| YE3-355L2-6 | 250 | 340 | 456 | 990 | 95.8 | 0.87 | 85 | 2.8 | 1.8 | 2 | 6.8 | 2140 |
| 同步轉速750r/min(8極)Synchronous Speed750r/min(8P) | ||||||||||||
| YE3-80M1-8 | 0.18 | 0.25 | 0.76 | 645 | 58.7 | 0.61 | 52 | 1.6 | 1.8 | 1.9 | 5.2 | 17 |
| YE3-80M2-8 | 0.25 | 0.35 | 0.97 | 645 | 64.1 | 0.61 | 52 | 1.6 | 1.8 | 1.9 | 5.7 | 18 |
| YE3-90S-8 | 0.37 | 0.5 | 1.33 | 670 | 69.3 | 0.61 | 56 | 1.6 | 1.8 | 1.9 | 6.2 | 22 |
| YE3-90L-8 | 0.55 | 0.75 | 1.88 | 670 | 73 | 0.61 | 56 | 1.6 | 1.8 | 2 | 5.9 | 28 |
| YE3-100L1-8 | 0.75 | 1 | 2.27 | 680 | 75 | 0.67 | 59 | 1.6 | 1.8 | 2 | 6.2 | 33 |
| YE3-100L2-8 | 1.1 | 1.5 | 3.12 | 680 | 77.7 | 0.69 | 59 | 1.6 | 1.8 | 2 | 6.2 | 39 |
| YE3-112M-8 | 1.5 | 2 | 4.09 | 690 | 79.7 | 0.7 | 61 | 1.6 | 1.8 | 2 | 6.7 | 44 |
| YE3-132S-8 | 2.2 | 3 | 5.7 | 705 | 81.9 | 0.71 | 64 | 1.6 | 1.8 | 2 | 6.7 | 61 |
| YE3-132M-8 | 3 | 4 | 7.5 | 705 | 83.5 | 0.73 | 64 | 1.6 | 1.8 | 2 | 6.9 | 72 |
| YE3-160M1-8 | 4 | 5.5 | 9.8 | 720 | 84.8 | 0.73 | 68 | 2.2 | 1.9 | 2 | 6.9 | 105 |
| YE3-160M2-8 | 5.5 | 7.5 | 13.1 | 720 | 86.2 | 0.74 | 68 | 2.2 | 1.9 | 2 | 6.9 | 121 |
| YE3-160L-8 | 7.5 | 10 | 17.4 | 720 | 87.3 | 0.75 | 68 | 2.2 | 1.9 | 2 | 6.6 | 138 |
| YE3-180L-8 | 11 | 15 | 25.2 | 730 | 88.6 | 0.75 | 70 | 2.2 | 2 | 2 | 6.6 | 187 |
| YE3-200L-8 | 15 | 20 | 33.5 | 730 | 89.6 | 0.76 | 73 | 2.2 | 2 | 2 | 6.8 | 242 |
| YE3-225S-8 | 18.5 | 25 | 41 | 730 | 90.1 | 0.76 | 73 | 2.2 | 1.9 | 2 | 6.8 | 286 |
| YE3-225M-8 | 22 | 30 | 47.3 | 730 | 90.6 | 0.78 | 73 | 2.2 | 1.9 | 2 | 7 | 319 |
| YE3-250M-8 | 30 | 40 | 63.2 | 740 | 91.3 | 0.79 | 75 | 2.2 | 1.9 | 2 | 6.7 | 418 |
| YE3-280S-8 | 37 | 50 | 77.5 | 735 | 91.8 | 0.79 | 76 | 2.2 | 1.9 | 2 | 6.7 | 539 |
| YE3-280M-8 | 45 | 60 | 93.9 | 735 | 92.2 | 0.79 | 76 | 2.2 | 1.9 | 2 | 6.7 | 594 |
| YE3-315S-8 | 55 | 75 | 112 | 735 | 92.5 | 0.81 | 82 | 2.8 | 1.8 | 2 | 6.8 | 902 |
| YE3-315M-8 | 75 | 100 | 151 | 735 | 93.1 | 0.81 | 82 | 2.8 | 1.8 | 2 | 6.3 | 1045 |
| YE3-315L1-8 | 90 | 125 | 179 | 735 | 93.4 | 0.82 | 82 | 2.8 | 1.8 | 2 | 6.4 | 1056 |
| YE3-315L2-8 | 110 | 150 | 218 | 735 | 93.7 | 0.82 | 82 | 2.8 | 1.8 | 2 | 6.4 | 1166 |
| YE3-355M1-8 | 132 | 180 | 260 | 740 | 94 | 0.82 | 89 | 2.8 | 1.8 | 2 | 6.4 | 1712 |
| YE3-355M2-8 | 160 | 220 | 314 | 740 | 94.3 | 0.82 | 89 | 2.8 | 1.8 | 2 | 6.4 | 1848 |
| YE3-355L1-8 | 185 | 250 | 358 | 740 | 94.5 | 0.83 | 89 | 2.8 | 1.8 | 2 | 6.4 | 1900 |
| YE3-355L2-8 | 200 | 270 | 387 | 740 | 94.6 | 0.83 | 89 | 2.8 | 1.8 | 2 | 6.4 | 1980 |
| 同步轉速600r/min(10極)Synchronous Speed600r/min(10P) | ||||||||||||
| YE3-315S-10 | 45 | 60 | 99.1 | 590 | 92 | 0.75 | 82 | 2.8 | 1.5 | 2 | 6.2 | 857 |
| YE3-315M-10 | 55 | 75 | 121 | 590 | 92 | 0.75 | 82 | 2.8 | 1.5 | 2 | 6.2 | 993 |
| YE3-315L1-10 | 75 | 100 | 162 | 590 | 92.8 | 0.76 | 82 | 2.8 | 1.5 | 2 | 5.8 | 1030 |
| YE3-315L2-10 | 90 | 125 | 191 | 590 | 93 | 0.77 | 82 | 2.8 | 1.5 | 2 | 5.9 | 1108 |
| YE3-355M1-10 | 110 | 150 | 230 | 590 | 93.3 | 0.78 | 90 | 2.8 | 1.3 | 2 | 6 | 1626 |
| YE3-355M2-10 | 132 | 180 | 274 | 590 | 93.8 | 0.78 | 90 | 2.8 | 1.3 | 2 | 6.1 | 1756 |
| YE3-355L1-10 | 160 | 220 | 332 | 590 | 93.8 | 0.78 | 90 | 2.8 | 1.3 | 2 | 6.1 | 1881 |
| YE3-355L2-10 | 185 | 250 | 384 | 590 | 93.8 | 0.78 | 90 | 2.8 | 1.3 | 2 | 6.1 | 1920 |
