H100-132

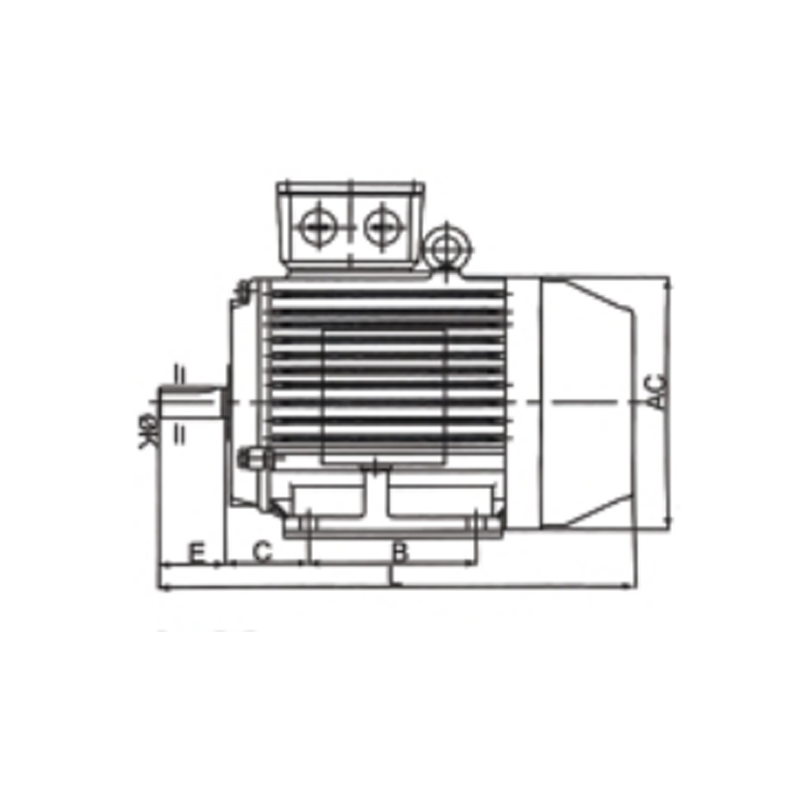

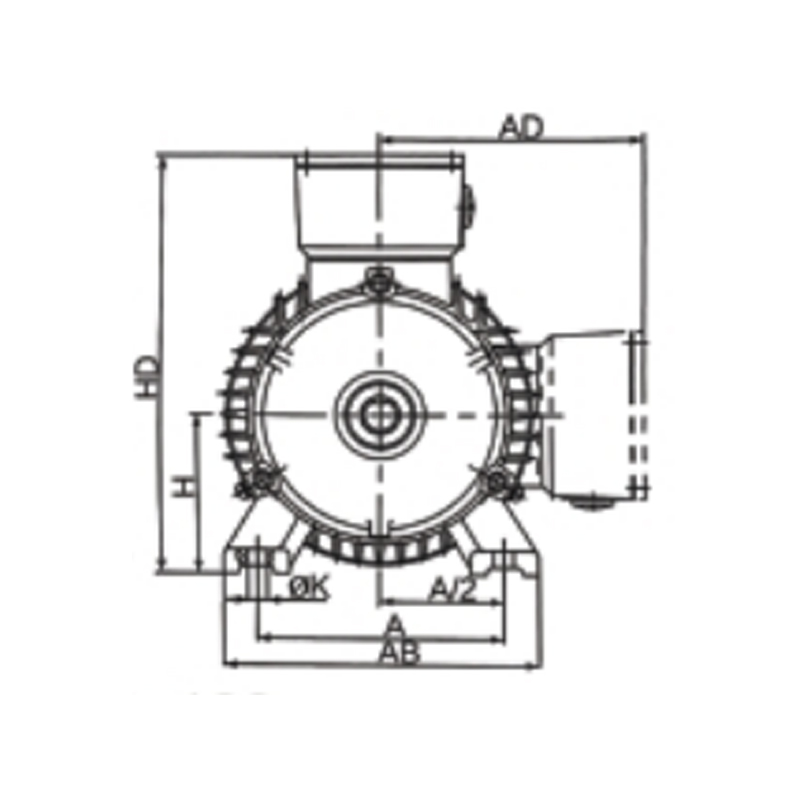

Frame with foot,end shield without flange(B3)

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

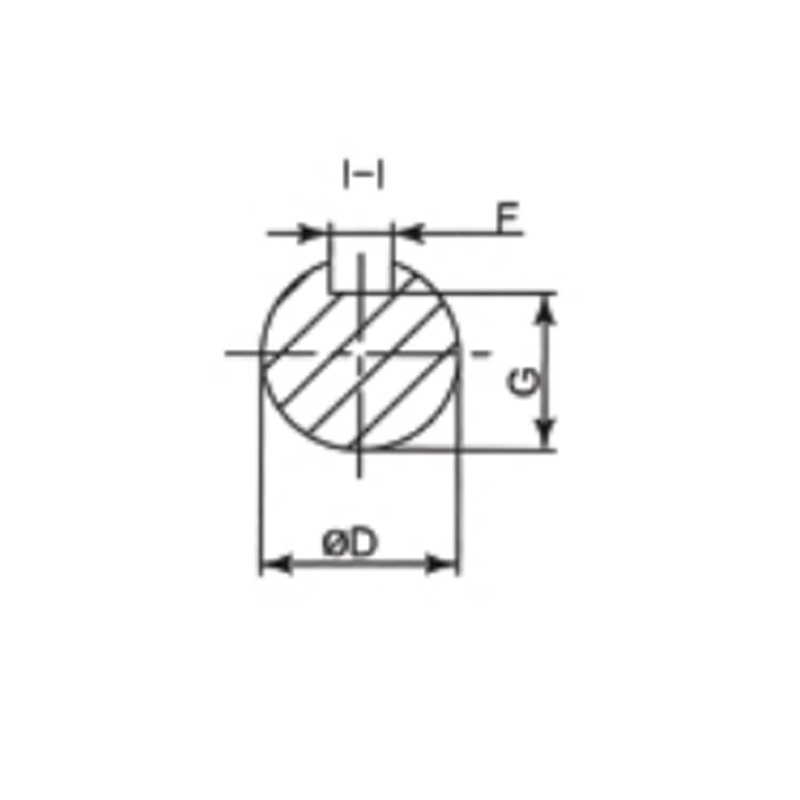

Frame	Ploes	Mounting dimension(mm)										Overall dimensions(mm)
Frame	Ploes	A	A/2	B	C	H	K	D	E	F	G	AB	AC	AD	HD	L
80M	2.4	125	62.5	100	50	80	10	19	40	6	15.5	165	175	145	220	305
90S	2.4.6	140	70	100	56	90	10	24	50	8	20	180	205	170	265	360
90L	2.4.6	140	70	125	56	90	10	24	50	8	20	180	205	170	265	390
100L	2.4.6.8	160	80	140	63	100	12	28	60	8	24	205	215	180	270	435
112M	2.4.6.8	190	95	140	70	112	12	28	60	8	24	230	255	200	310	440
132S	2.4.6.8	216	108	140	89	132	12	38	80	10	33	270	310	230	365	510
132M	4.6.8	216	108	178	89	132	12	38	80	10	33	270	310	230	365	550
160M	2.4.6.8	254	127	210	108	160	14.5	42	110	12	37	320	340	260	425	730
160L	2.4.6.8	254	127	254	108	160	14.5	42	110	12	37	320	340	260	425	760
180M	2.4	279	139.5	241	121	180	14.5	48	110	14	42.5	355	390	285	460	770
180L	4.6.8	279	139.5	279	121	180	14.5	48	110	14	42.5	355	390	285	460	800
200L	2.4.6.8	318	159	305	133	200	18.5	55	110	16	49	395	445	320	520	860
225S	4.8	356	178	286	149	225	18.5	60	140	18	53	435	495	350	575	830
225M	2	356	178	311	149	225	18.5	55	110	16	49	435	495	350	575	830
225M	4.6.8	356	178	311	149	225	18.5	60	140	18	53	435	495	350	575	860
250M	2	406	203	349	168	250	24	60	140	18	53	490	550	390	635	990
250M	4.6.8	406	203	349	168	250	24	65	140	18	58	490	550	390	635	990
280S	2	457	228.5	368	190	280	24	65	140	18	58	550	630	435	705	990
280S	4.6.8	457	228.5	368	190	280	24	75	140	20	67.5	550	630	435	705	990
280M	2	457	228.5	419	190	280	24	65	140	18	58	550	630	435	705	1040
280M	4.6.8	457	228.5	419	190	280	24	75	140	20	67.5	550	630	435	705	1040
315S	2	508	254	406	216	315	28	65	140	18	58	635	645	530	845	1180
315S	4.6.8	508	254	406	216	315	28	80	170	22	71	635	645	530	845	1290
315M	2	508	254	457	216	315	28	65	140	18	58	635	645	530	845	1210
315M	4.6.8	508	254	457	216	315	28	80	170	22	71	635	645	530	845	1320
315L	2	508	254	508	216	315	28	65	140	18	58	635	645	530	845	1210
315L	4.6.8	508	254	508	216	315	28	80	170	22	71	635	645	530	845	1320
355M	2	610	305	560	254	355	28	75	140	20	67.5	730	710	655	1010	1500
355M	4.6.8	610	305	560	254	355	28	95	170	25	86	730	710	655	1010	1530
355L	2	610	305	630	254	355	28	75	140	20	67.5	730	710	655	1010	1500
355L	4.6.8	610	305	630	254	355	28	95	170	25	86	730	710	655	1010	1530
3551 3552 3553	2	630	315	800	224	355	35	80	170	22	71	760	770	760	1130	1870
	4.6.8	630	315	800	224	355	35	110	210	28	100	760	770	760	1130	1920
	4.6.8	630	315	800	224	355	35	110	210	28	100	760	770	760	1130	1920
